R20S Roller Blind with Braked Spring

PART NO R20S

R20S Roller Blind with Braked Spring

When child safety is your priority, the R20S braked spring is the answer.  With no cords, the tamper-proof blind ensures children can’t get entangled.  Very easy to use with the spring doing the work to give you a  smooth and quiet operation.  Comes with white metal universal brackets for face or top fixing.

  • 32mm barrel diameter
  • Range of bottom bar styles
  • Child safe - No cords

Downloads

Benefits

Supported by sturdy metal brackets, the braked spring is enclosed within the barrel and allows you to stop the blinds at any height.  A spring limiter lets you adjust the up and down position of the roller blinds.  The fabric is locked into the barrel and bottom bar maintaining exceptional edge to edge coverage for even better shading properties.

Select your ideal fabric colour from the flame retardant YewdaleDefiant fabric range.

Options

  • Spring limit stop
  • Alternative bottom bars including fully fabric covered in aluminium or plastic and aluminium teardrop in black or silver
  • White aluminium back bar
  • Turn-button tag
  • Optional extra: Discreet Fascia available in 3 colours, custom RAL on request and with a channel for inserting a fabric strip
Alternatives versions of our R20S Roller Blind:

R20C Roller Blind with Crank

R20 Roller Blind with Sidewinder

R20B Roller Blind with Low Voltage Battery

R20M Roller Blind with Low Voltage Electric

R20W Roller Blind with Light Duty Crank

Specification

The YewdaleDefiant® R20S braked spring control roller blind which is vandal-resistant and child friendly. The braked spring is housed within aluminium barrel supported by white metal brackets. Flame retardant fabric from the YewdaleDefiant® range, locked into grooved 32mm aluminium barrel along with white teardrop aluminium bottom bar.

Code Description Min Width Max Width Max Drop Max m2
R20S Slow-rise Spring 450 1850 2450 4.3

Based on fabric weight of 220g/m², e.g. Thames. Use of heavier fabrics may require appropriate reductions. Sizes shown in millimetres unless otherwise specified.

R20S recess size width minus 6mm = blind size width minus 20mm = fabric width

Dim Out
Black Out
Screen
Fire Retardancy
Suitable for roller blinds
Suitable for vertical blinds
Anti Bacterial
Wipe Clean
Wipe with damp sponge
Suitable for moist conditions
100% Polyester

Dim Out

Black Out

Screen

Fire Retardancy

Suitable for roller blinds

Suitable for vertical blinds

Anti Bacterial

Wipe Clean

Wipe with damp sponge

Suitable for moist conditions

100% Polyester

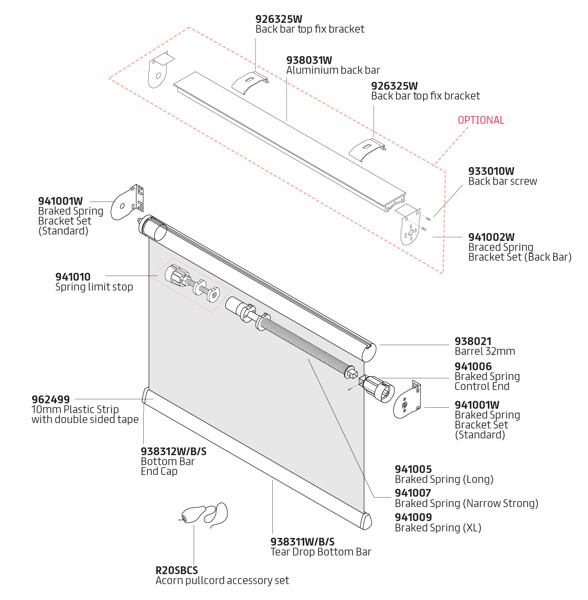

System Components

Product Details

Benefits

Supported by sturdy metal brackets, the braked spring is enclosed within the barrel and allows you to stop the blinds at any height.  A spring limiter lets you adjust the up and down position of the roller blinds.  The fabric is locked into the barrel and bottom bar maintaining exceptional edge to edge coverage for even better shading properties.

Select your ideal fabric colour from the flame retardant YewdaleDefiant fabric range.

Options

  • Spring limit stop
  • Alternative bottom bars including fully fabric covered in aluminium or plastic and aluminium teardrop in black or silver
  • White aluminium back bar
  • Turn-button tag
  • Optional extra: Discreet Fascia available in 3 colours, custom RAL on request and with a channel for inserting a fabric strip
Alternatives versions of our R20S Roller Blind:

R20C Roller Blind with Crank

R20 Roller Blind with Sidewinder

R20B Roller Blind with Low Voltage Battery

R20M Roller Blind with Low Voltage Electric

R20W Roller Blind with Light Duty Crank

Specification

The YewdaleDefiant® R20S braked spring control roller blind which is vandal-resistant and child friendly. The braked spring is housed within aluminium barrel supported by white metal brackets. Flame retardant fabric from the YewdaleDefiant® range, locked into grooved 32mm aluminium barrel along with white teardrop aluminium bottom bar.

Min Width: 450

Max Width: 1850

Max Drop: 2450

Max m2: 4.3

Based on fabric weight of 220g/m², e.g. Thames. Use of heavier fabrics may require appropriate reductions. Sizes shown in millimetres unless otherwise specified.

R20S recess size width minus 6mm = blind size width minus 20mm = fabric width

Fabric Options

Dim Out
Black Out
Screen
Fire Retardancy
Suitable for roller blinds
Suitable for vertical blinds
Anti Bacterial
Wipe Clean
Wipe with damp sponge
Suitable for moist conditions
100% Polyester

Dim Out

Black Out

Screen

Fire Retardancy

Suitable for roller blinds

Suitable for vertical blinds

Anti Bacterial

Wipe Clean

Wipe with damp sponge

Suitable for moist conditions

100% Polyester

System Components

System Components
